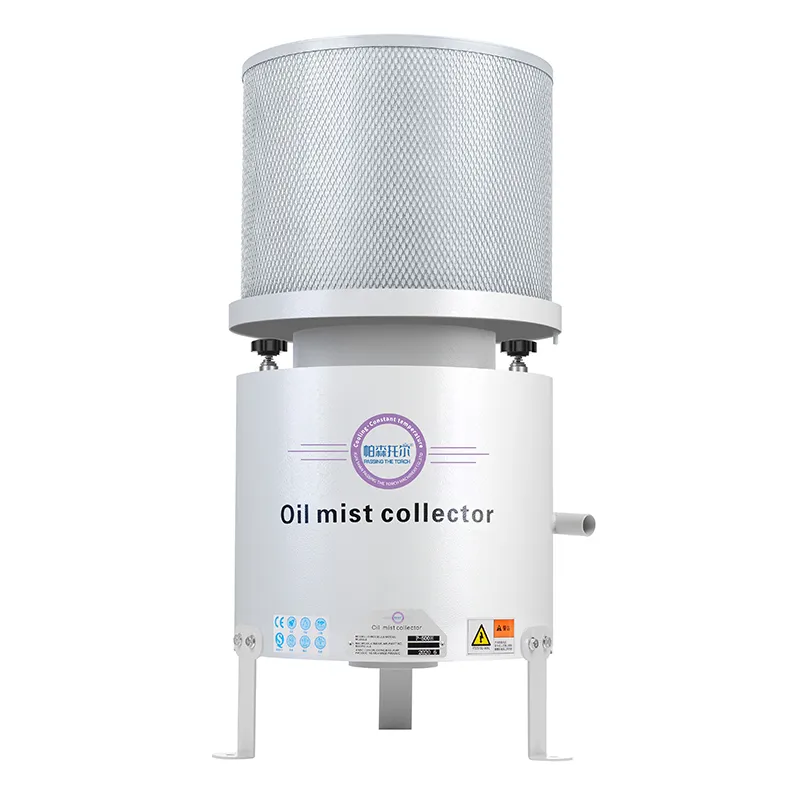

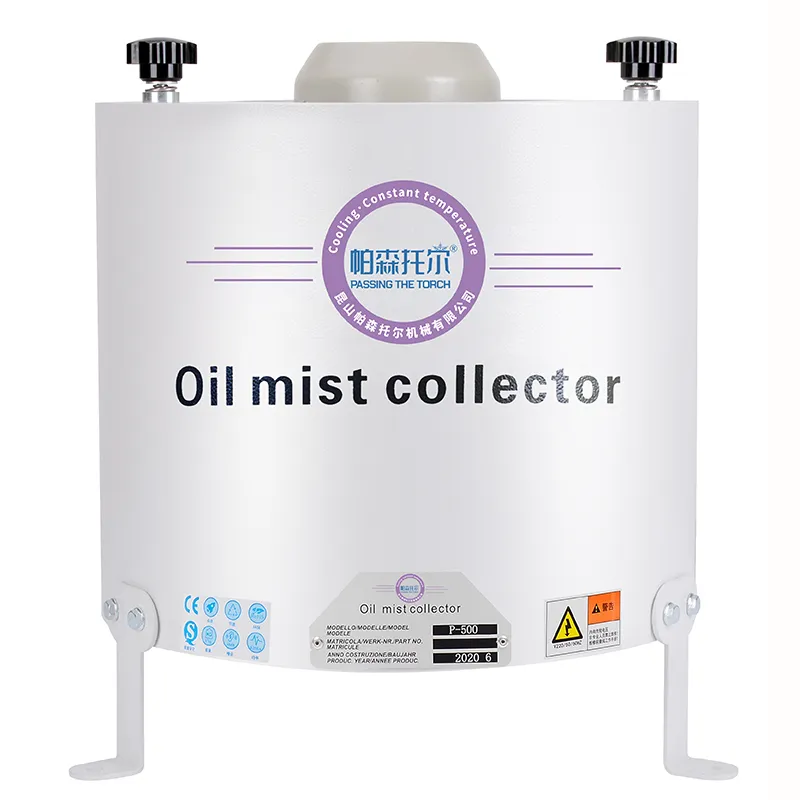

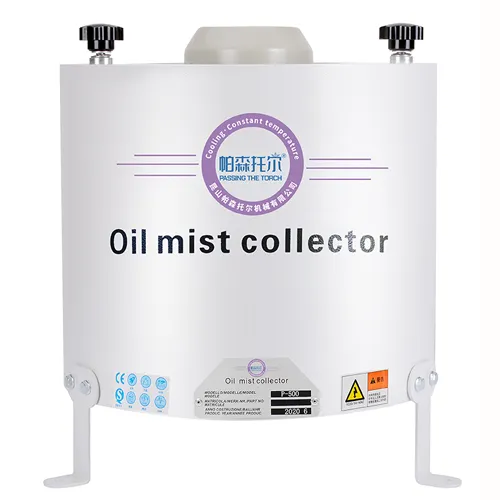

Oil Mist Collectors

Oil mist collectors are used in machining equipment to remove oil mist, coolant mist, and fine particles generated during cutting, grinding, and drilling operations. The contaminated air is drawn into the mist collector unit and passes through a multi-stage separation process that captures oil droplets and fine mist. The oil droplets combine inside the filter until they form liquid oil that can be collected and reused or disposed of properly, while the cleaned air is released back into the workshop.

Applications
Oil mist collectors can be used in machining and industrial equipment that generate oil mist and fine dust during operation, such as:

  • Electrical discharge machines (EDM)
  • High-speed CNC machining centers
  • Gear processing machines
  • General CNC machine tools
  • Engraving machines
  • Printing machines
  • Vacuum pumps
  • Industrial cleaning equipment
Specifications
Model Power Supply (AC) Input Power (W) *Max. Airflow (m³/h) Noise Level (dBA) Inlet Diameter (mm) Net Weight (kg) Protection Rating Insulation Class
50Hz 60Hz 50Hz 60Hz 50Hz 60Hz
Am250 3-Phase 220/380V 50/60Hz 90 120 390 450 58 60 80 10 Ip55 F
Am500 3-Phase 220/380V 50/60Hz 250 290 600 750 68 69 100 14 Ip55 F
Am1000 3-Phase 220/380V 50/60Hz 550 630 1670 1800 70 71 150 29 Ip55 F
Am2000 3-Phase 220/380V 50/60Hz 1100 1300 2000 2350 72 73 150 34 Ip55 F
Am3000 3-Phase 220/380V 50/60Hz 1500 1750 3000 3400 73 75 200 48 Ip55 F

Note: Max. airflow is measured at open inlet.

Features
  • Easy Installation: Oil mist collectors can be installed directly on machine tools or brackets, which makes installation and removal simple and fast.
  • Safer Workplace: Oil mist does not settle on floors or walkways, which helps keep working areas safer and reduces the chance of slipping accidents.
  • Fire Risk Control: Prevents buildup on walls, ceilings, and machine surfaces by controlling airborne mist and residue, which helps reduce fire risk over time.
  • Operator Protection: Reduces health risks from oil mist contact with eyes and skin, while also lowering the chance of skin and eye issues, headaches, and discomfort caused by inhalation during machining operations.
  • Longer Equipment Life: Less oil mist settles on electrical and mechanical parts, which helps avoid short circuits, corrosion, and early wear of components.
