Electrical Cabinet Air Conditioner

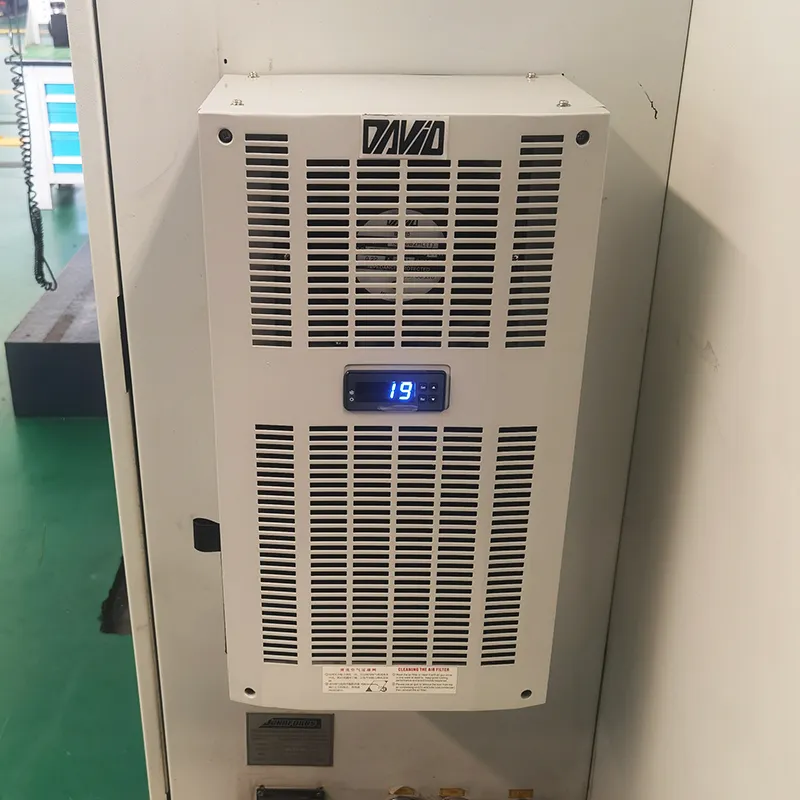

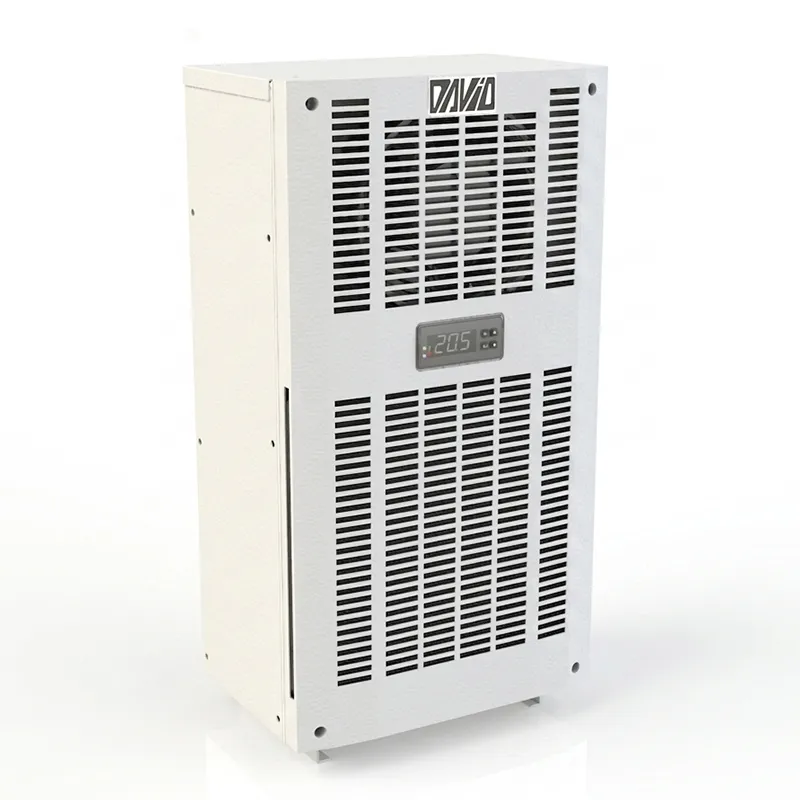

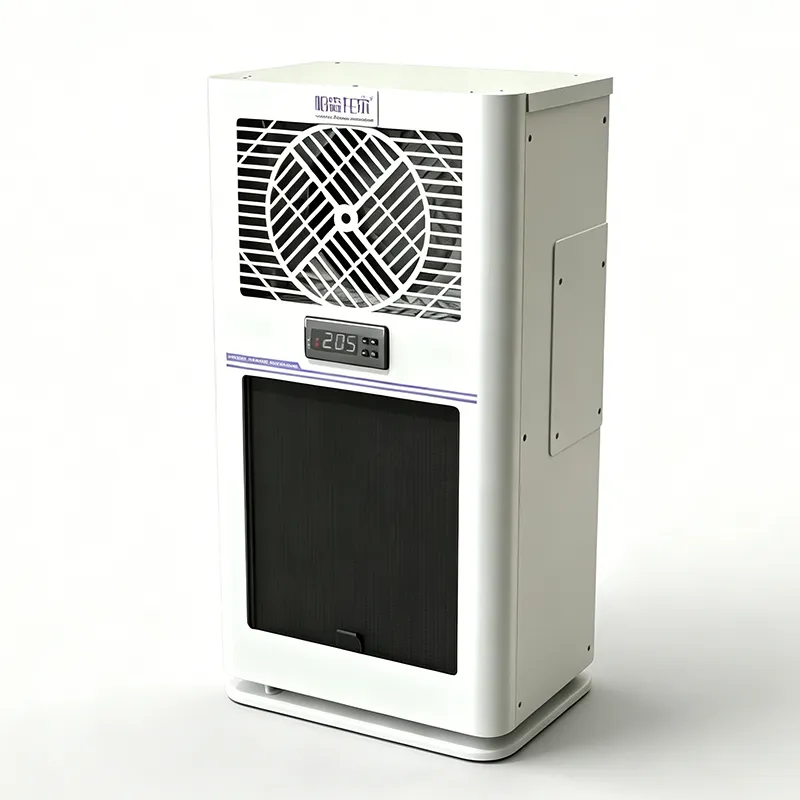

Electrical cabinet air conditioners control temperature and humidity inside equipment cabinets to protect electronic components in enclosed environments. They use a compressor-based refrigeration cycle that removes heat from inside the cabinet and releases it outside, while optional dehumidifying and humidifying functions help maintain a stable internal environment. Thanks to their enclosed design, external dust and corrosive gases stay away from sensitive components.

Smart control functions are available according to customer requirements, including operation monitoring, zone control, automatic adjustment, and IoT connection for remote access. These units are widely used in machine control cabinets, outdoor communication cabinets, outdoor power cabinets, base stations, and other applications with a high concentration of electronic components.

Contact Us
Specification Sheet
Specifications
Model AC-01 AC-02 AC-03 AC-04 AC-06 AC-08 AC-12 AC-24
Cooling Capacity W 290 580 870 1160 1740 2325 3485 6975
Kcal/h 250 500 750 1000 1500 2000 3000 6000
Power Supply Single Phase AC 220V 50/60Hz Single Phase AC 220V 50/60Hz Single Phase AC 220V 50/60Hz Single Phase AC 220V 50/60Hz Single Phase AC 220V 50/60Hz Single Phase AC 220V 50/60Hz Single Phase AC 220V 50/60Hz Single Phase AC 220V 50/60Hz
Rated Power (W) 450 500 600 750 1100 1100 1300 4000
Rated Current (A) 1.5 2.3 2.6 3.3 4 4.7 5.6 18
Operating Temperature (℃) 20-50 20-50 20-50 20-50 20-50 20-50 20-50℃ 20-50
Ambient Temperature (℃) 5-45 5-45 5-45 5-45 5-45 5-45 5-45℃ 5-45
Noise Level ≤65 dB ≤65 dB ≤68 dB ≤68 dB ≤68 dB ≤68 dB ≤68 dB ≤68 dB
Protection Rating IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44
Cutout Dimensions (mm) 253×293 318×345 318×345 360×370 360×370 360×370 390×498.5 620×990
Dimensions (mm) 290×195×555 365×235×655 365×235×655 412×265×775 287×418×733 287×418×733 468×287×883 688×480×1177
Weight (kg) 18.5 29 32 42 44 44 52.5 125
