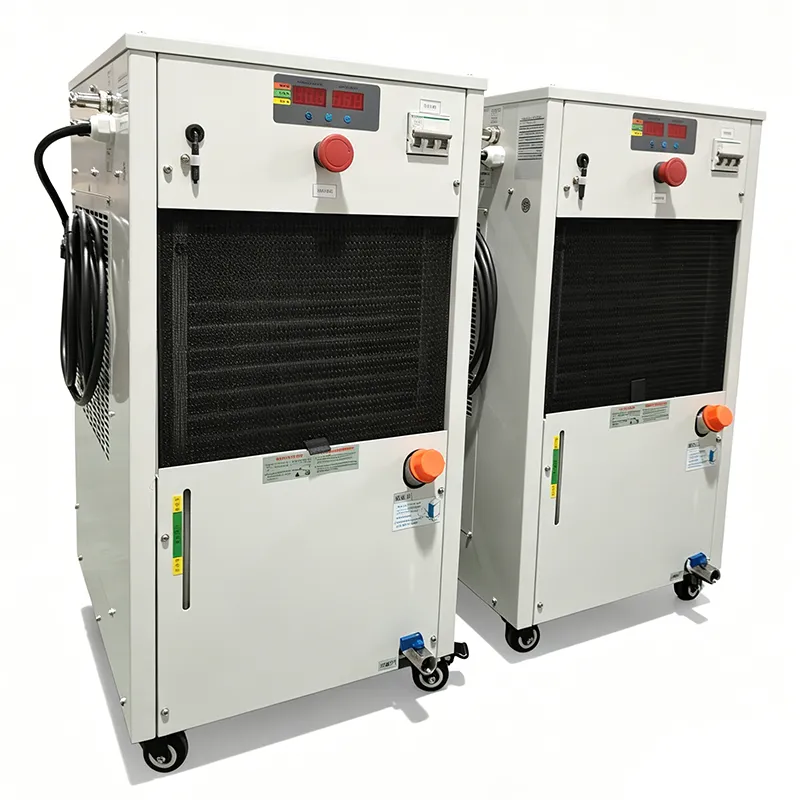

Solid-State Laser Chiller

Industrial Chiller Applications

Laser Cooling Units

Process Chiller Type: Water medium, air-cooled chiller
Cooling Capacity: 1.0-7.5kW

These laser chillers control the temperature of solid-state laser equipment through precise PID temperature control. The cooling water temperature stays within ±0.5–0.1°C, which reduces the impact of temperature changes on laser output and beam quality. Our solid-state laser chillers are used for laser cutting machines, laser welding machines, laser marking machines, laser drilling equipment, medical aesthetic devices, medical equipment, optical testing equipment, LiDAR devices, distance measurement equipment, and communication equipment.

Specification Sheet

Specifications

Model		AW-70	AW-100	AW-150	AW-200	AW-300	AW-400	AW-550
Power Supply		380V/3P+N/50Hz
Total Power	kW	4.2	4.7	6.7	8.3	15	19	24
Current	A	6.5	7	9.5	12	26	30	42
Refrigerant		R22
Nominal Cooling Capacity	kW	7.5	10	15	20	32	42	58
Nominal Cooling Capacity	Btu/s	25000	37000	55000	68500	109000	143000	198000
Heating Power	kW	500~1000	1000~3000			6000	9000
Water Tank Capacity	L	65	110	200	200	450	600
Temperature Range	℃	15-35
Control Accuracy	℃	±1.5(AWH±0.1~0.2)
Max. Flow Rate	L/min	30~60	60			120	240
Max. Pressure	Mpa	0.42	0.47			0.62	0.68
Connection Size		G 1”				G 2”
Weight	Kg	180	220	260	320	520	720	780
Dimensions	mm	780× 610×1270	940× 650×1650	1250×750×1750		1600× 900×1950	1800×1200×2050

With over a decade of dedication to industrial process cooling and thermal management for industrial equipment, we have established us as a reliable manufacturer of industrial process chillers, enclosure air conditioners, air-air heat exchangers and oil mist collectors. We understand that every production process has different thermal requirements and operational demands. From CNC machining and semiconductors to laser processing and electronics manufacturing, we deliver the industrial cooling solutions designed to keep your production and operation running with temperature consistency and thermal stability. With all industrial chillers and industrial equipment thermal control systems certified by CE and ISO, we are committed to assisting you in optimizing production efficiency, minimizing downtime and reducing operational costs.
