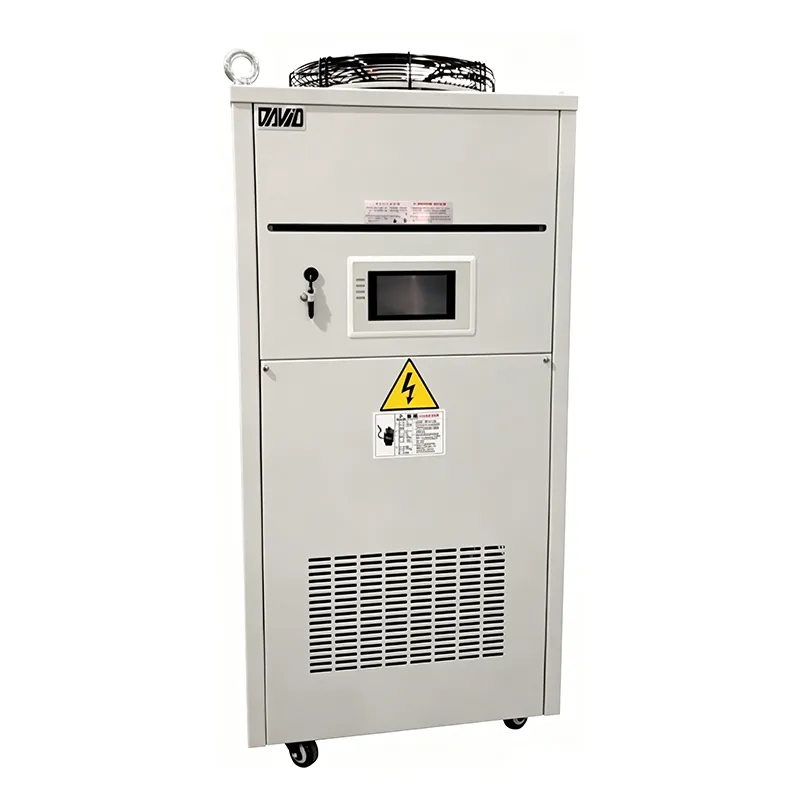

5-Axis Machine Chiller

Industrial Process Chiller for CNC Machines

Process Chiller Type: Water medium, air-cooled chiller
Cooling Capacity: 3.5-12kW

5-axis machine chillers are designed for CNC machining centers equipped with multi-axis swing head systems and are used to keep stable temperature conditions to reduce thermal variation that can affect positioning accuracy during continuous multi-axis movement and complex machining. They are equipped with PID temperature regulation to keep coolant conditions properly controlled, typically within around ±0.5°C, and reduce the impact of thermal expansion and contraction in the rotating and tilting components of the machine head. These process chillers are widely used in high-precision five-axis machining centers for complex metal parts in aerospace and turbine manufacturing, that need accurate and stable machining.

Specification Sheet

Specifications

Model		AWH25PTS-1227
Cooling Capacity (50HZ)		2500W
Power	Main Circuit	Single Phase AC 220V-240V 50/60Hz
	Control Circuit	Single Phase AC 220V-240V 50/60Hz
Enclosure Paint		RAL-7035
Dimensions		450×500×1040mm
Compressor		Rotary compressor
Evaporator		Plate evaporator
Condenser		Cross-fin coil type
Fan Blade		Propeller fan blade
Heating Element		304 stainless steel
Water Pump	Power	0.37kW
	Rated flow	2m³/h
Temperature Control		Select one of the following two modes: Differential temperature control mode (adjustable range: -9.9°C to +9.9°C) Constant temperature control mode (inlet temperature setpoint range: 5°C to 40°C)
Refrigerant Control		Electronic expansion valve
Protection Devices		Overcurrent protection Restart prevention timer High oil temperature protection Low oil temperature protection
Temperature Control Accuracy		±0.5°C
Refrigerant		R134a
Water Tank Capacity		20L (pure water)
Temperature Range	Room temperature	10°C to 45°C
	Inlet temperature	10°C to 40°C
Connection Size	Inlet	G 1/2”
	Outlet	G 1/2”
	Drain port	G 1/2”
	Water filling port	G 1”
Weight		60kg
Standard Accessories		User manual
