Spindle Chiller / Gearbox Chiller

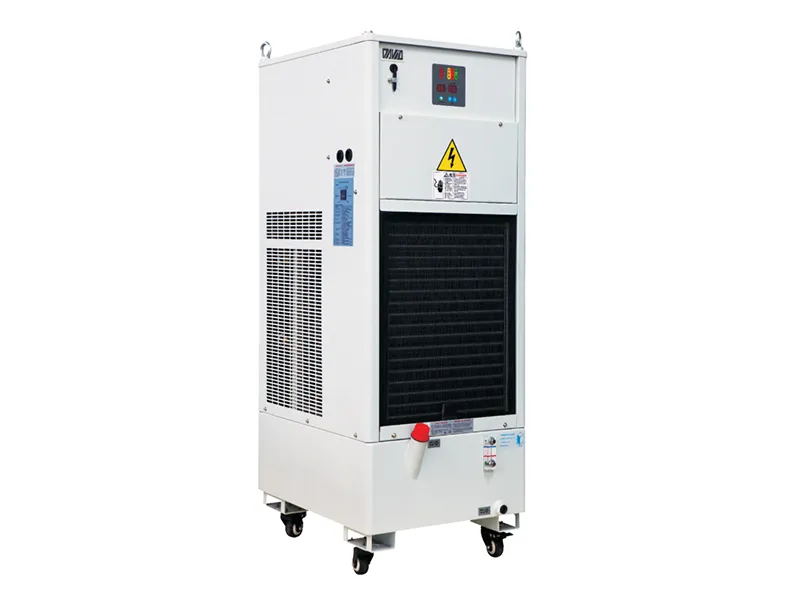

Dual-Pump Oil Chiller
- Process Chiller Type: Oil medium, air-cooled chiller
Dual-pump oil chillers integrate two independent pump circuits that operate together or individually, providing separate or combined temperature control for spindle and gearbox lubrication systems under different load conditions.
Contact Us
Specifications
| Model | |||||
| Cooling Capacity | W | 2500 | 3500 | 5000 | 7000 |
| Kcal/h | 2150 | 3000 | 4300 | 6000 | |
| Power Supply | Three Phase AC 220/380V 50Hz | ||||
| Rated Power (W) | 1800 | 2200 | 2600 | 4500 | |
| Pump Flow Rate (L/min) | 12 | 15 | 25 | 35 | |
| Outlet Pressure (Mpa) | 0.5~1.5 | 0.5~1.5 | 0.5~1.5 | 0.5~1.5 | |
| Connection | Rp3/4 | Rp3/4 | Rp1 | Rp1 | |
| Oil Temperature Range (℃) | Constant temperature control: 15°C to 50℃ Differential temperature control (ambient temperature compensation): +9°C Control accuracy: ±1.5℃ | ||||
| Ambient Temperature (℃) | 5-45℃ | ||||
| Noise Level | ≤60 dB(A) | ≤68 dB(A) | |||
| Protection Rating | IP44 | IP44 | IP44 | IP44 | |
| Oil Tank Capacity (L) | 30 | 30 | 40 | 40 | |
| Dimensions (with Oil Tank) (mm) | 425×500×950 | 425×500×950 | 480×550×1200 | 675×545×1265 | |
| Weight (with Oil Tank) (kg) | 70 | 75 | 90 | 100 | |
Features
- Dual-pump oil chillers can cool the gearbox and spindle at the same time, or focus cooling only on the gearbox when needed.
- During high-load machining or high-temperature conditions, the dual-pump system directs cooling to the gearbox, increasing flow capacity for this component and preventing oil viscosity drop, weakened lubrication film, increased gear wear, oil oxidation, and reduced lubricant service life.
- They can be connected separately to the spindle and gearbox to for synchronized cooling, maintain stable cooling flow between components, and avoid insufficient cooling when a single pump system shares flow, which helps maintain stable machine tool operation and machining quality.
