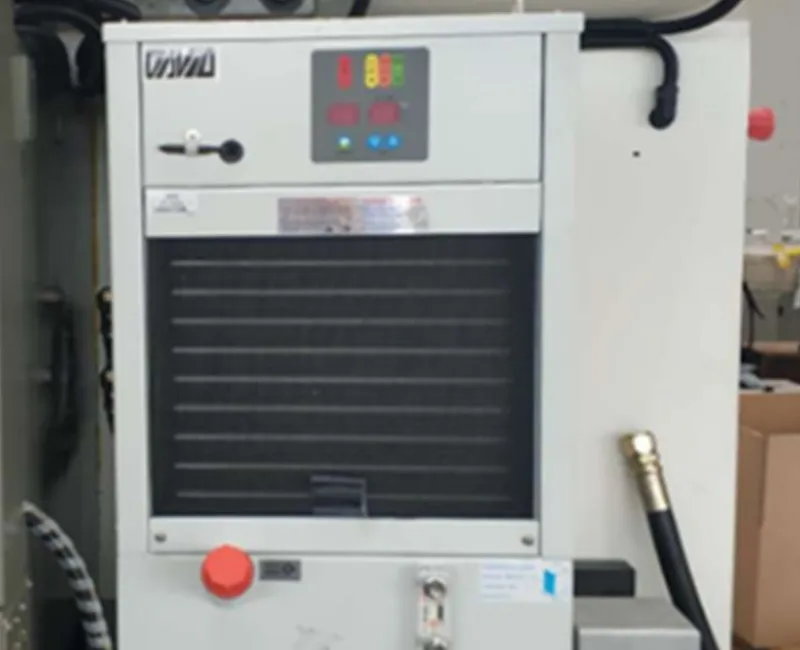

Machine Spindle Oil Chiller

Machine Tool Cooling Units

  • Process Chiller Type: Oil medium, air-cooled chiller
  • Cooling Capacity: 0.3-110kW

Oil chillers are temperature control units designed to control heat of spindle systems of various machine tools such as CNC machines, grinders, boring machines, milling machines, and gantry machining centers. During continuous machining processes, spindle lubrication oil and hydraulic oil gradually increase in temperature due to friction and workload, and if heat is not properly controlled, thermal deformation can affect spindle stability and cause machining errors. When using oil chillers, the spindle oil remains at a stable temperature throughout machining, which helps the spindle to maintain accuracy and prevent expansion due to heat.

Contact Us
Specification Sheet
Specifications
Model AO-10PTS
Cooling Capacity (50Hz) 1000W
860 Kcal/h
Power Main circuit Three Phase AC 220V/380V 50Hz
Control circuit Single Phase AC 26V 50Hz
Enclosure Paint RAL-7035
Dimensions 365×445×660mm
Compressor SD074
Evaporator Aluminum fins with copper tubes
Condenser Aluminum fins with copper tubes
Fan Blade Propeller fan blade

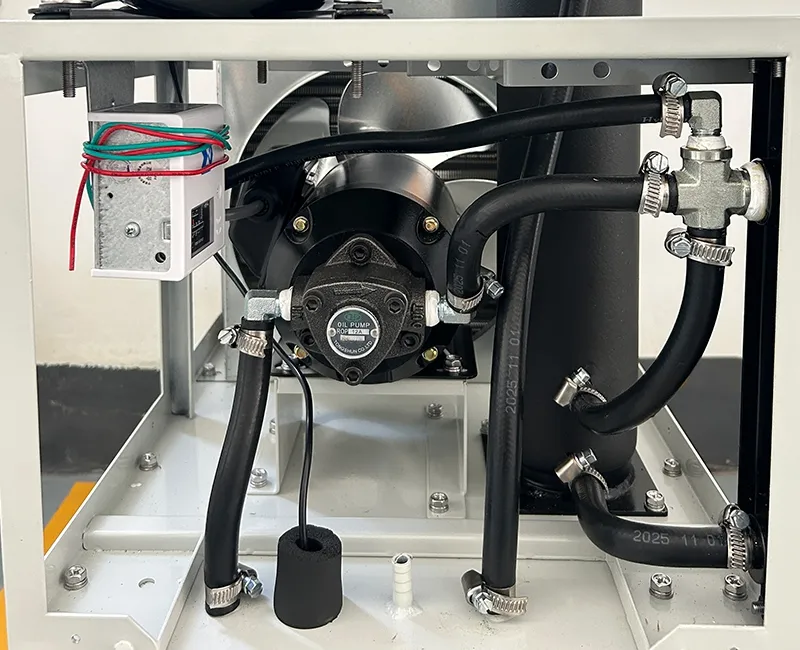

Pump Pump type (with motor) 3-Phase, induction motor 1/4 HP (0.19 kW), 4-Pole
Rated flow (50Hz) 4.5 L/min
Temperature Control Select one of the following two modes:
Differential temperature control mode (adjustable range: -9.9°C to +9.9°C)
Constant temperature control mode (inlet temperature setpoint range: 10°C to 40°C)
Refrigerant Control Capillary tube
Protection Devices Compressor protection
Overcurrent protection
Phase reversal protection
Restart prevention timer
High liquid temperature protection
Low liquid temperature protection
Applicable oil Lubricating oil, spindle oil
Refrigerant R22
Temperature Range Room temperature 10°C to 45°C
Inlet temperature 10°C to 40°C
Connection Size Inlet G 1/2"
Outlet G 1/2"
Fluid filling port G 1"
Drain port G 1/2"
Weight 50 kg
Features
  • Thanks to direct-drive cooling, spindle temperature remains stable during machining, thermal expansion is reduced, and machining accuracy stays stable.
  • Due to stable temperature control, spindle bearings stay protected from overheating, which helps prevent jamming issues and extends bearing life during continuous operation.
  • Equipped with a full metal oil tank that works efficiently in extreme hot and cold environments, especially in places that have frequent temperature changes.

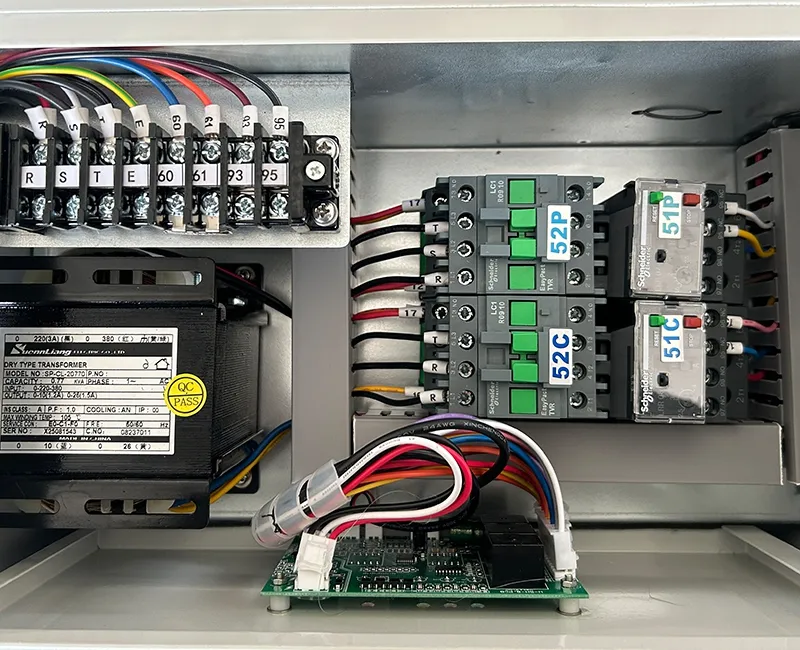

  • The electrical system separates high and low voltage circuits, reduces risk during maintenance and daily operation, and improves operator safety.
